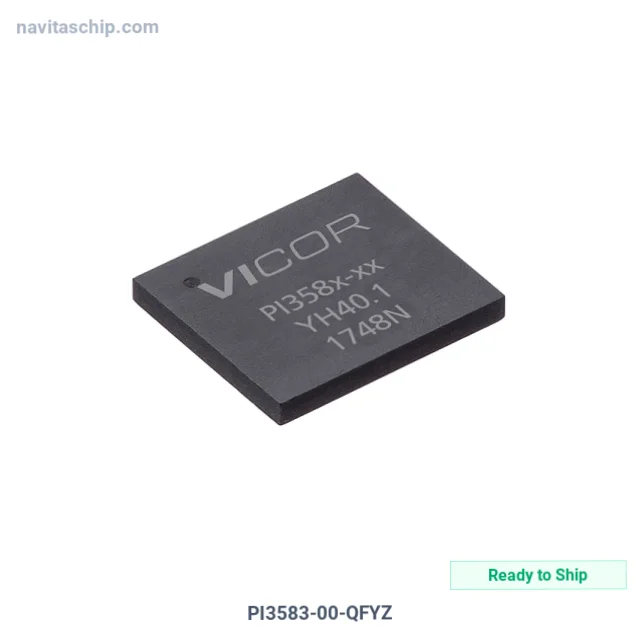

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI3583-00-QFYZ |
| Manufacturer | Vicor Corporation |
| NavitasChip Part Number | NAVI-9932013 |
| Description | IC REG BUCK ADJ/2.2V 10A 37GQFN |
| Spec | 37-PowerVFQFN Module |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Vicor Corporation |
| Package | Tray |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 30V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 2.2V (3.3V) |
| Voltage - Output (Max) | 4V |
| Current - Output | 10A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -20°C ~ 120°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 37-GQFN (7x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vicor Corporation PI3583-00-QFYZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI3583-00-QFYZ is a DC-DC Switching Voltage Regulator manufactured by Vicor Corporation. Integrated Circuit Regulator Buck Adjustable/2.2V Supply 10a 37gqfn, housed in a compact 37-GQFN (7x8) package.
Key Technical Specifications
- Output Type: Adjustable (Fixed)
- Operating Temperature: -20°C ~ 120°C
- Mounting: Surface Mount
- Package: 37-PowerVFQFN Module
- Device Package: 37-GQFN (7x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
