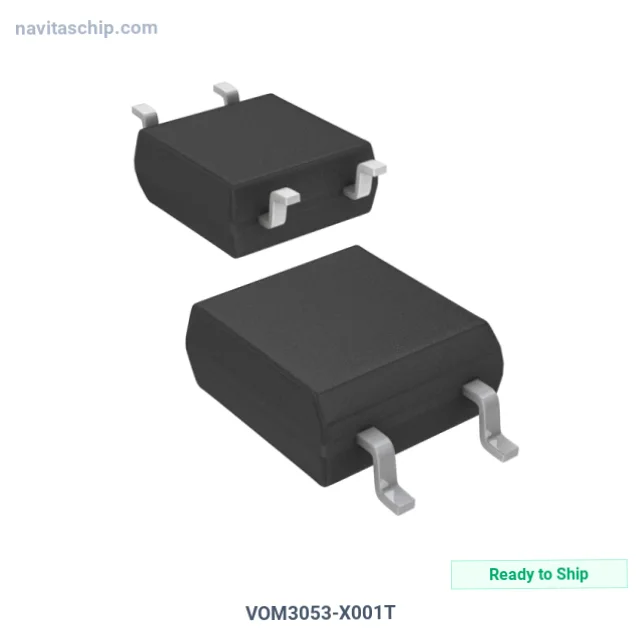

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | VOM3053-X001T |
| Manufacturer | Vishay Semiconductor Opto Division |
| NavitasChip Part Number | NAVI-3675188 |
| Description | OPTOISOLTR 3.75KV TRIAC 1CH 4SOP |
| Spec | 4-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1.5kV/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Current - Hold (Ih) | 300µA (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-SOP |
| Approval Agency | CQC, cUR, UR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vishay Semiconductor Opto Division VOM3053-X001T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The VOM3053-X001T is an Optocoupler manufactured by Vishay Semiconductor Opto Division (Vishay-Opto). Optocoupler Isolator 3.75kV Triac 1ch 4-SOP, housed in a compact 4-SOP package.
Don't let optocoupler lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Triac
- Channels: 1
- Operating Temperature: -40°C ~ 100°C
- Mounting: Surface Mount
- Package: 4-SMD, Gull Wing
- Device Package: 4-SOP
- RoHS Compliant
Applications
Commonly utilized in:
- motor drives
- power supplies
- isolation feedback
- signal isolation
- safety isolation
Why Choose NavitasChip for VOM3053-X001T?
NavitasChip offers wholesale pricing advantages for the VOM3053-X001T and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for VOM3053-X001T with regional warehouse support.
VOM3053-X001T - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
