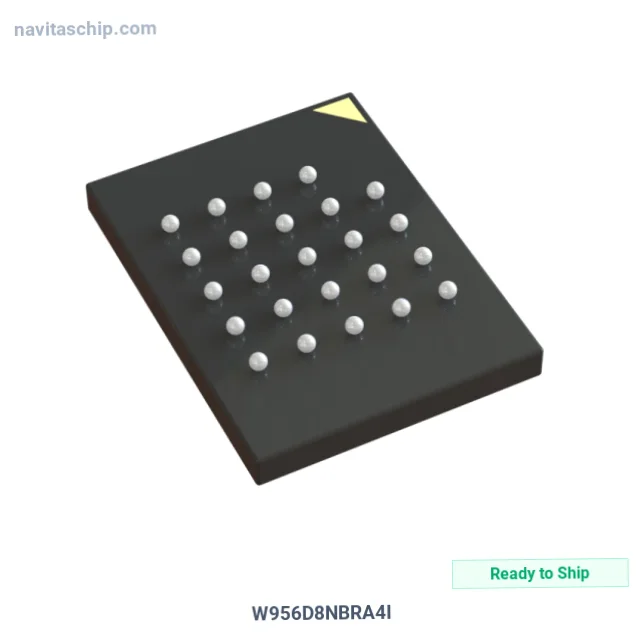

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | W956D8NBRA4I |
| Manufacturer | Winbond Electronics |
| NavitasChip Part Number | NAVI-27513121 |
| Description | 64MB HYPERRAM X8, 250MHZ |
| Spec | 24-TBGA |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Winbond Electronics |
| Package | Tray |
| Product Status | Active |
| Memory Type | Volatile |
| Memory Format | PSRAM |
| Technology | PSRAM (Pseudo SRAM) |
| Memory Size | 64Mbit |
| Memory Organization | 8M x 8 |
| Memory Interface | HyperBus |
| Clock Frequency | 250 MHz |
| Write Cycle Time - Word, Page | 35ns |
| Access Time | 40 ns |
| Voltage - Supply | 1.16V ~ 1.3V, 1.3V ~ 1.45V, 1.425V ~ 1.575V, 1.7V ~ 2V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TFBGA (6x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W956D8NBRA4I is a Memory IC manufactured by Winbond Electronics (Winbond). 64mb Hyperram X8, housed in a compact 24-TFBGA (6x8) package, with 1.16V ~ 1.3V, 1.3V ~ 1.45V, 1.425V ~ 1.575V, 1.7V ~ 2V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.16V ~ 1.3V, 1.3V ~ 1.45V, 1.425V ~ 1.575V, 1.7V ~ 2V
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 24-TBGA
- Device Package: 24-TFBGA (6x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
