Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | WIZnet |
| Package | Tray |
| Product Status | Active |
| Protocol | Ethernet |
| Function | Controller |
| Interface | SPI |
| Standards | 10/100 Base-T/TX PHY |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 5µA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 80-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | WIZnet W5100 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

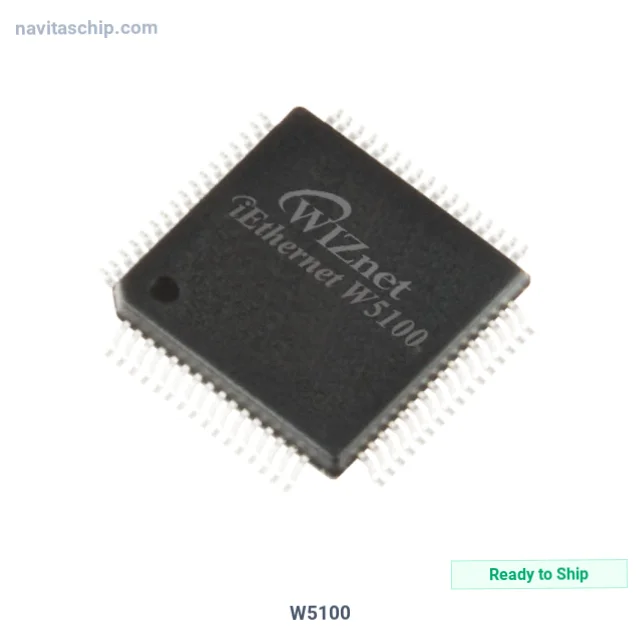

The W5100 is an Interface Controller IC manufactured by WIZnet. Integrated Circuit Controller Ethernet in 80-Pin LQFP Package, housed in a compact 80-LQFP (10x10) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Interface: SPI
- Operating Temperature: -40°C ~ 85°C
- Package: 80-LQFP
- Device Package: 80-LQFP (10x10)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
