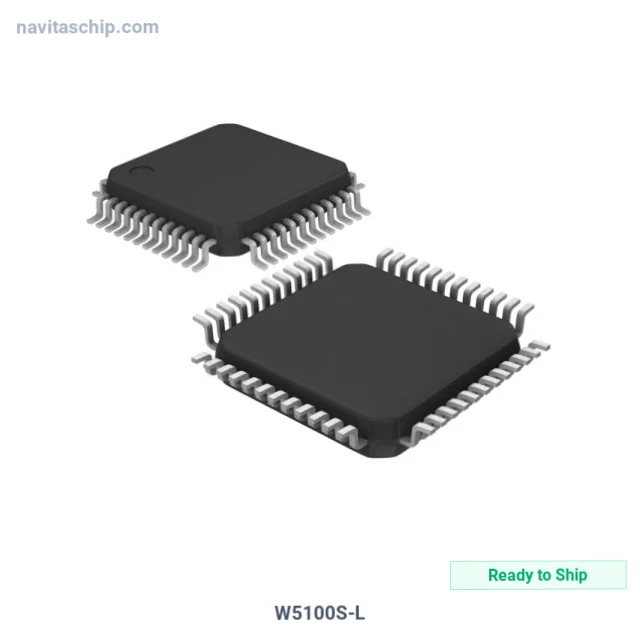

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | WIZnet |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | Ethernet |
| Function | Controller |
| Interface | SPI |
| Standards | 10/100 Base-T/TX PHY |
| Voltage - Supply | 2.97V ~ 3.63V |
| Current - Supply | 132mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | WIZnet W5100S-L Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W5100S-L is an Interface Controller IC manufactured by WIZnet. Integrated Circuit Ethernet Cntrlr SPI in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package, with 2.97V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V
- Interface: SPI
- Operating Temperature: -40°C ~ 85°C
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
