Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Zilog |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | External Peripheral Interface |
| Clock Rate | 20MHz |
| Non-Volatile Memory | OTP (8kB) |
| On-Chip RAM | 1kB |
| Voltage - I/O | 5.00V |
| Voltage - Core | 5.00V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Zilog Z8937120PSC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

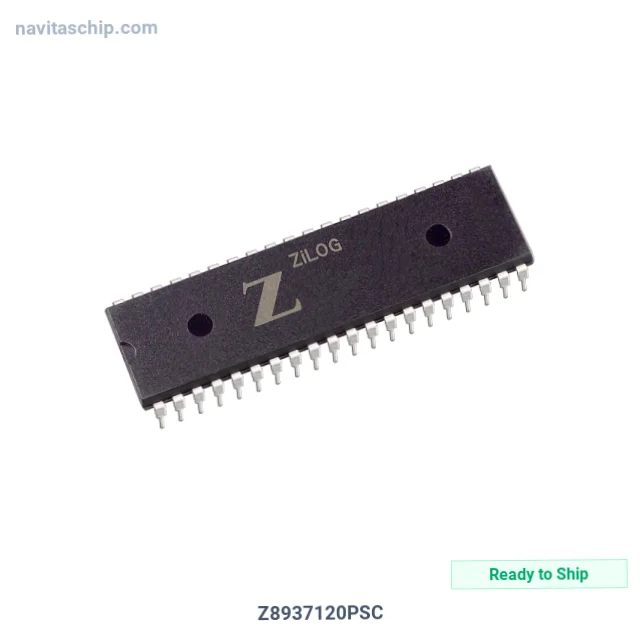

The Z8937120PSC is a Digital Signal Processor (DSP) manufactured by Zilog. Digital Signal Processor operating at 20MHz in 40-Pin DIP Package, housed in a compact 40-PDIP package.
Key Technical Specifications
- Interface: External Peripheral Interface
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Through Hole
- Package: 40-DIP (0.620", 15.75mm)
- Device Package: 40-PDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
