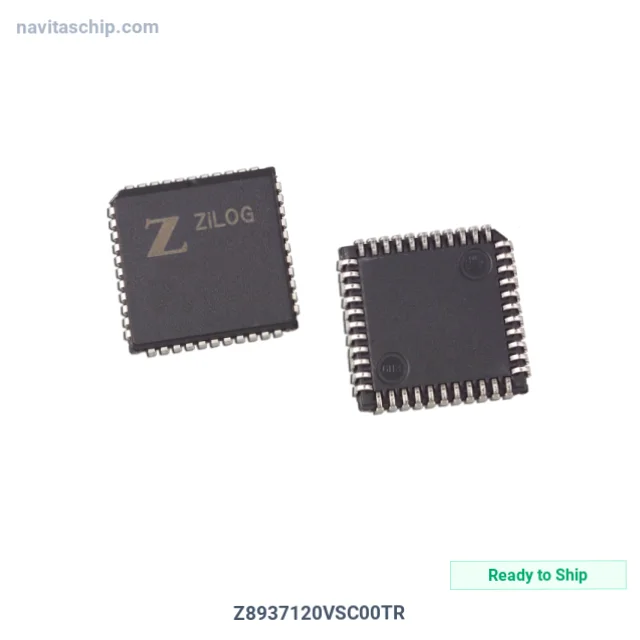

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Zilog |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | External Peripheral Interface |
| Clock Rate | 20MHz |
| Non-Volatile Memory | OTP (8kB) |
| On-Chip RAM | 1kB |
| Voltage - I/O | 5.00V |
| Voltage - Core | 5.00V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-PLCC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Zilog Z8937120VSC00TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The Z8937120VSC00TR is a Digital Signal Processor (DSP) manufactured by Zilog. Integrated Circuit Digital Signal Processor Overtemperature Protection 4k 44plcc, housed in a compact 44-PLCC package.
Key Technical Specifications
- Interface: External Peripheral Interface
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 44-LCC (J-Lead)
- Device Package: 44-PLCC
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
