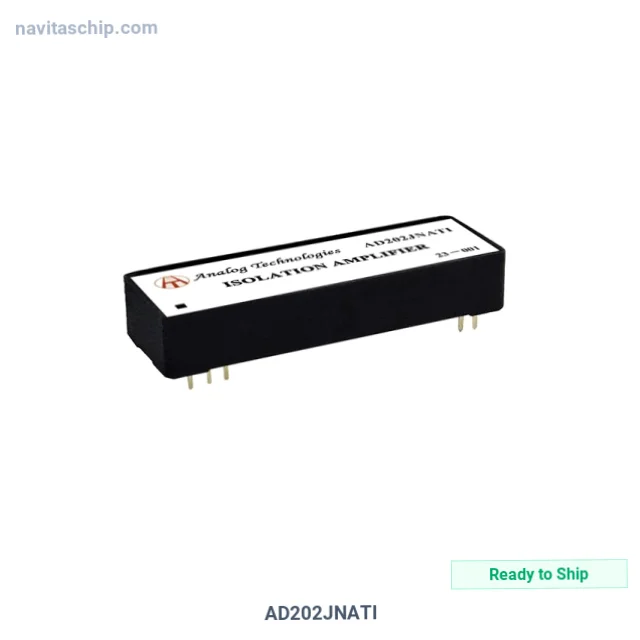

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD202JNATI |
| Manufacturer | Analog Technologies |
| NavitasChip Part Number | NAVI-20507209 |
| Description | Upgraded Drop-in Replacement for |
| Spec | 38-DIP (0.500", 12.70mm), 10 Leads |
| Package | Tape & Box (TB) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Technologies |
| Package | Tape & Box (TB) |
| Product Status | Active |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| -3db Bandwidth | 20 kHz |
| Current - Input Bias | 30 pA |
| Current - Supply | 10mA |
| Current - Output / Channel | 400 µA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 10-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Technologies AD202JNATI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD202JNATI is an Operational Amplifier (Op Amp) manufactured by Analog Technologies. Upgraded Drop-in Rlacement For, housed in a compact 10-DIP package. Industrial temperature range (-40°C to +85°C).
Facing vintage Burr-Brown OPA series legacy parts with original date code traceability for process control replacements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 38-DIP (0.500", 12.70mm), 10 Leads
- Device Package: 10-DIP
- RoHS Compliant
Applications
Widely adopted for:
- consumer electronics
- high-speed op amp with wide gain-bandwidth product for active filter and ADC driver stages
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
Why Choose NavitasChip for AD202JNATI?
NavitasChip offers cost-effective alternative to authorized distributors for the AD202JNATI and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Box (TB) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of AD202JNATI for the Shanghai and Mainland China markets.
AD202JNATI - Check our competitive price now.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
