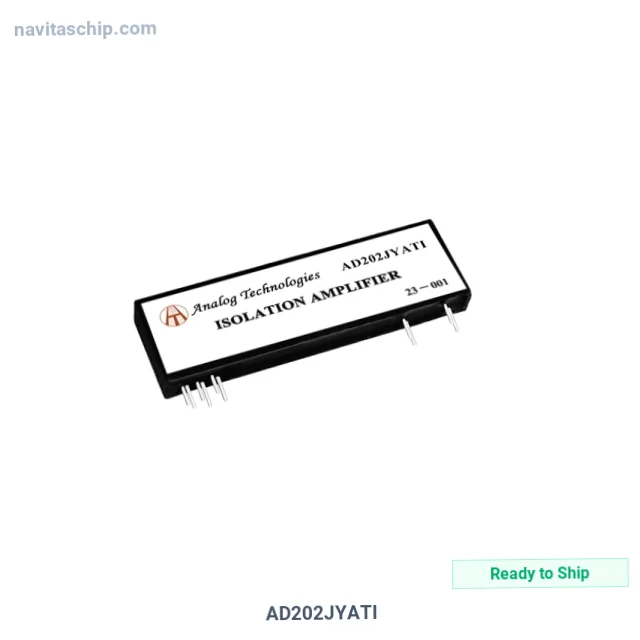

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD202JYATI |
| Manufacturer | Analog Technologies |
| NavitasChip Part Number | NAVI-20507215 |
| Description | Upgraded Drop-in Replacement for |
| Spec | 38-SIP, 10 Leads, Offset Leads |
| Package | Tape & Box (TB) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Technologies |
| Package | Tape & Box (TB) |
| Product Status | Active |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| -3db Bandwidth | 20 kHz |
| Current - Input Bias | 30 pA |
| Current - Supply | 10mA |
| Current - Output / Channel | 400 µA |
| Voltage - Supply Span (Min) | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 10-SIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Technologies AD202JYATI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD202JYATI is an Operational Amplifier (Op Amp) manufactured by Analog Technologies. Upgraded Drop-in Replacement For, housed in a compact 10-SIP package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 38-SIP, 10 Leads, Offset Leads
- Device Package: 10-SIP
- RoHS Compliant
Packaging: factory Tape & Box (TB) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
