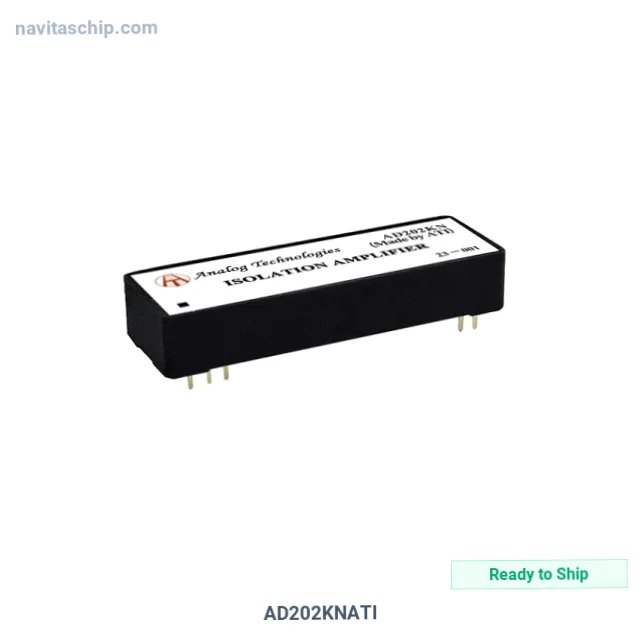

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD202KNATI |
| Manufacturer | Analog Technologies |
| NavitasChip Part Number | NAVI-19285198 |
| Description | Upgraded Drop-in Replacement for |
| Spec | 38-DIP (0.500", 12.70mm), 10 Leads |
| Package | Tape & Box (TB) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Technologies |
| Package | Tape & Box (TB) |
| Product Status | Active |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| -3db Bandwidth | 100 kHz |
| Current - Input Bias | 30 pA |
| Current - Supply | 10mA |
| Current - Output / Channel | 400 µA |
| Voltage - Supply Span (Min) | 14.25 V |
| Voltage - Supply Span (Max) | 15.75 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 10-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Technologies AD202KNATI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD202KNATI is an Operational Amplifier (Op Amp) manufactured by Analog Technologies. Upgraded Drop-in Rlacement For, housed in a compact 10-DIP package. Industrial temperature range (-40°C to +85°C).
Struggling with supply gaps during industrial sensor and motor control production lifecycle ramps? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 38-DIP (0.500", 12.70mm), 10 Leads
- Device Package: 10-DIP
- RoHS Compliant
Applications
Ideal solution for:
- precision op amp with low input offset voltage, low drift and high CMRR for instrumentation
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
Why Choose NavitasChip for AD202KNATI?
NavitasChip offers supply gap bridging when factory lead times exceed 50 weeks for the AD202KNATI and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Box (TB) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
AD202KNATI sourced and shipped via our Asia-Pacific distribution network.
AD202KNATI - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
