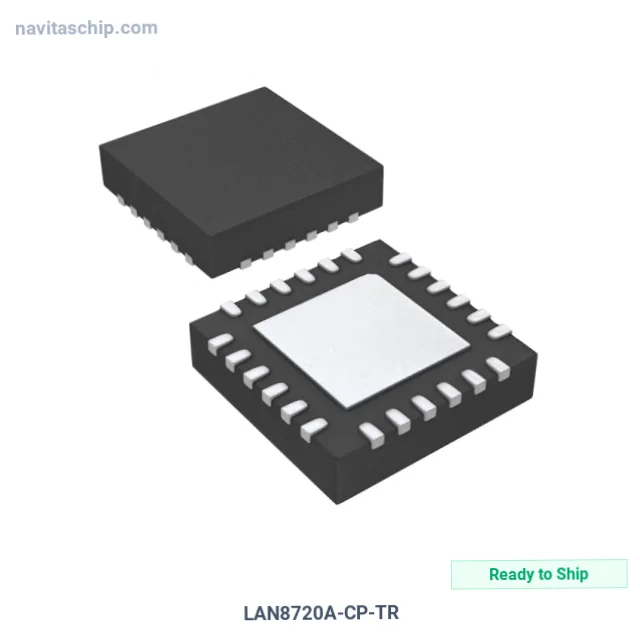

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LAN8720A-CP-TR |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-3872109 |
| Description | IC TRANSCEIVER FULL 2/2 24QFN |
| Date Code (D/C) | 25+ |
| Spec | 24-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Microchip Technology |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | MII, RMII |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Data Rate | 100Mbps |
| Voltage - Supply | 1.6V ~ 3.6V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-QFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology LAN8720A-CP-TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LAN8720A-CP-TR is an Interface Driver Receiver Transceiver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Transceiver Full 2/2 in 24-Pin QFN Package, housed in a compact 24-QFN (4x4) package, with 1.6V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.6V ~ 3.6V
- Operating Temperature: 0°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-VFQFN Exposed Pad
- Device Package: 24-QFN (4x4)
- RoHS Compliant

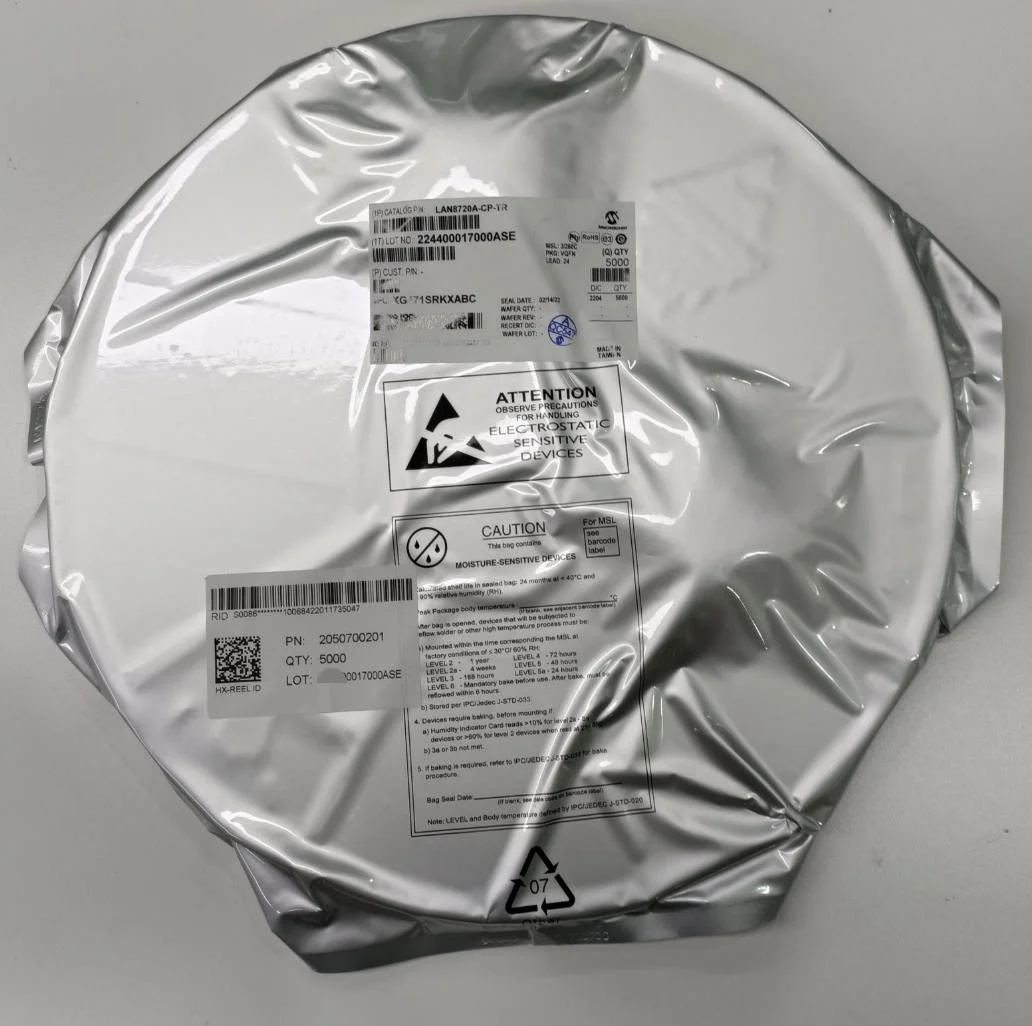

Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
