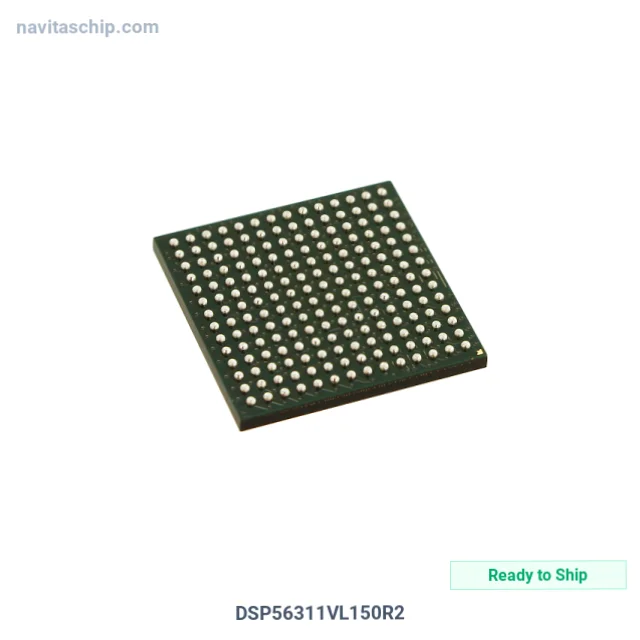

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSP56311VL150R2 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-954459 |
| Description | IC DSP 24BIT 150MHZ 196-MAPBGA |
| Spec | 196-LBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | Host Interface, SSI, SCI |
| Clock Rate | 150MHz |
| Non-Volatile Memory | ROM (576B) |
| On-Chip RAM | 384kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.80V |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 196-LBGA (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. DSP56311VL150R2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSP56311VL150R2 is a Digital Signal Processor (DSP) manufactured by NXP USA Inc. (NXP). Integrated Circuit Digital Signal Processor 24bit operating at 150MHz in 196-Pin BGA Package, housed in a compact 196-LBGA (15x15) package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Interface: Host Interface, SSI, SCI
- Operating Temperature: -40°C ~ 100°C (TJ)
- Mounting: Surface Mount
- Package: 196-LBGA
- Device Package: 196-LBGA (15x15)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
