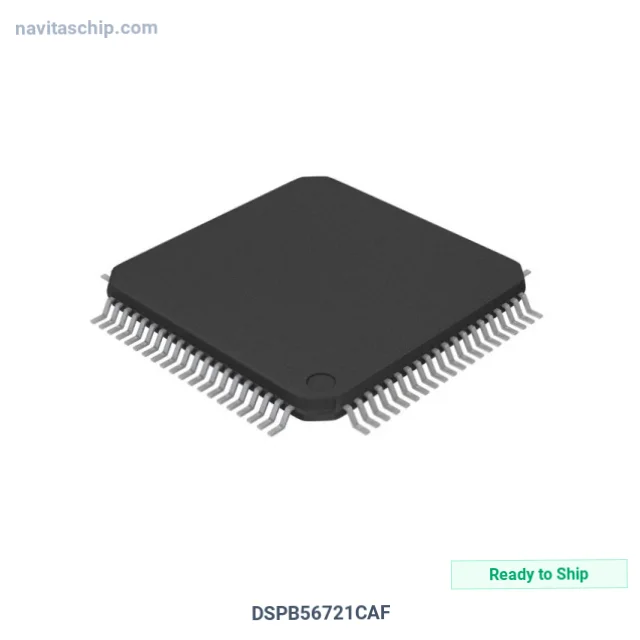

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSPB56721CAF |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2185262 |
| Description | DSP 24BIT AUD 200MHZ 80-LQFP |
| Spec | 80-QFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | Audio Processor |
| Interface | Host Interface, I2C, SAI, SPI |
| Clock Rate | 200MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 744kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.00V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. DSPB56721CAF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSPB56721CAF is a Digital Signal Processor (DSP) manufactured by NXP USA Inc. (NXP). Digital Signal Processor 24bit Aud operating at 200MHz in 80-Pin LQFP Package, housed in a compact 80-LQFP (14x14) package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Interface: Host Interface, I2C, SAI, SPI
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 80-QFP
- Device Package: 80-LQFP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
