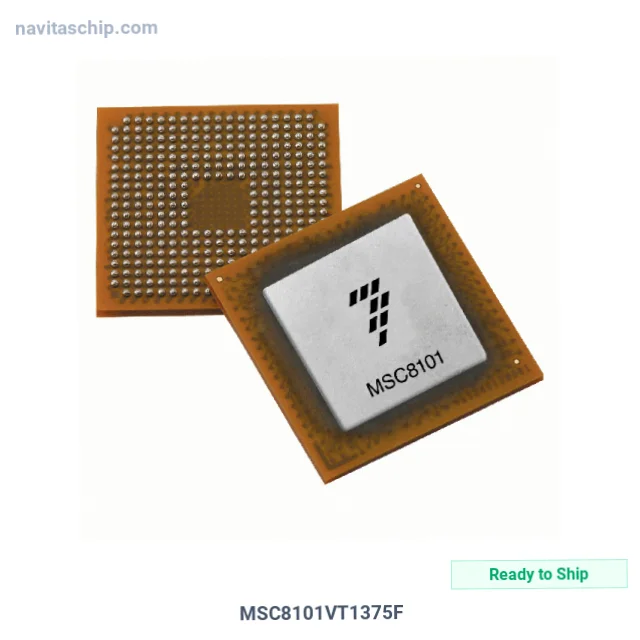

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MSC8101VT1375F |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-955091 |
| Description | IC DSP 16BIT 250MHZ 332FCBGA |
| Spec | 332-BFBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | SC140 Core |
| Interface | Communications Processor Module (CPM) |
| Clock Rate | 275MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 512kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.60V |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 332-FCBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MSC8101VT1375F Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MSC8101VT1375F is a Digital Signal Processor (DSP) manufactured by NXP USA Inc. (NXP). Integrated Circuit Digital Signal Processor 16bit operating at 250MHz in 332-Pin BGA Package, housed in a compact 332-FCBGA (17x17) package.
Key Technical Specifications
- Interface: Communications Processor Module (CPM)
- Operating Temperature: -40°C ~ 105°C (TJ)
- Mounting: Surface Mount
- Package: 332-BFBGA, FCBGA
- Device Package: 332-FCBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
