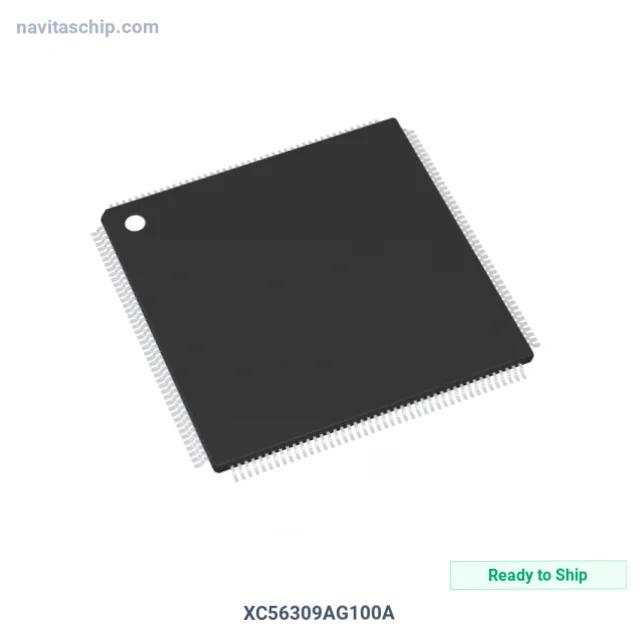

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XC56309AG100A |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-968501 |
| Description | IC DSP 24BIT 100MHZ 144-TQFP |
| Spec | 144-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | Host Interface, SSI, SCI |
| Clock Rate | 100MHz |
| Non-Volatile Memory | ROM (576B) |
| On-Chip RAM | 24kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. XC56309AG100A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XC56309AG100A is a Digital Signal Processor (DSP) manufactured by NXP USA Inc. (NXP). Integrated Circuit Digital Signal Processor 24bit operating at 100MHz in 144-Pin TQFP Package, housed in a compact 144-LQFP (20x20) package. Originally developed by Xilinx.
Key Technical Specifications
- Interface: Host Interface, SSI, SCI
- Operating Temperature: -40°C ~ 105°C (TJ)
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
