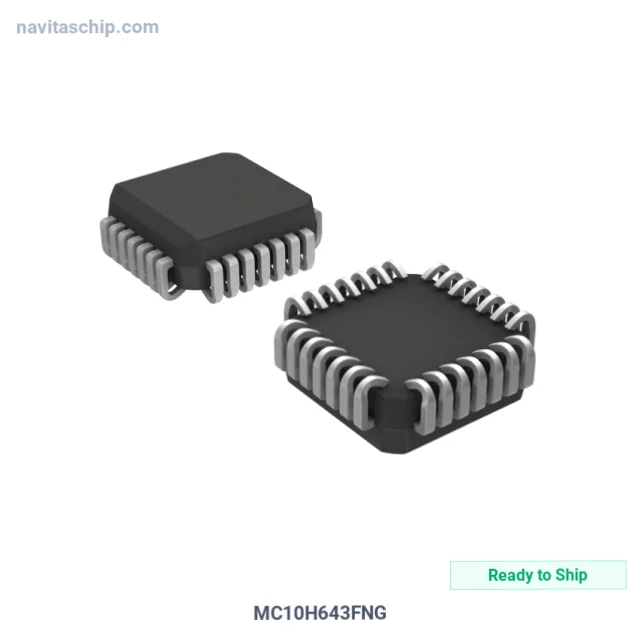

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC10H643FNG |
| Manufacturer | onsemi |
| NavitasChip Part Number | NAVI-1478568 |
| Description | IC CLK BUFFER 1:8 80MHZ 28PLCC |
| Spec | 28-LCC (J-Lead) |
| Package | Tube |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:8 |
| Differential - Input | Yes/No |
| Input | ECL, TTL |
| Output | TTL |
| Frequency - Max | 80 MHz |
| Voltage - Supply | 4.75V ~ 5.25V, -4.68V ~ -5.72V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC10H643FNG is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:8 operating at 80MHz 28plcc, housed in a compact 28-PLCC (11.51x11.51) package, with 4.75V ~ 5.25V, -4.68V ~ -5.72V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V, -4.68V ~ -5.72V
- Operating Temperature: 0°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-LCC (J-Lead)
- Device Package: 28-PLCC (11.51x11.51)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
