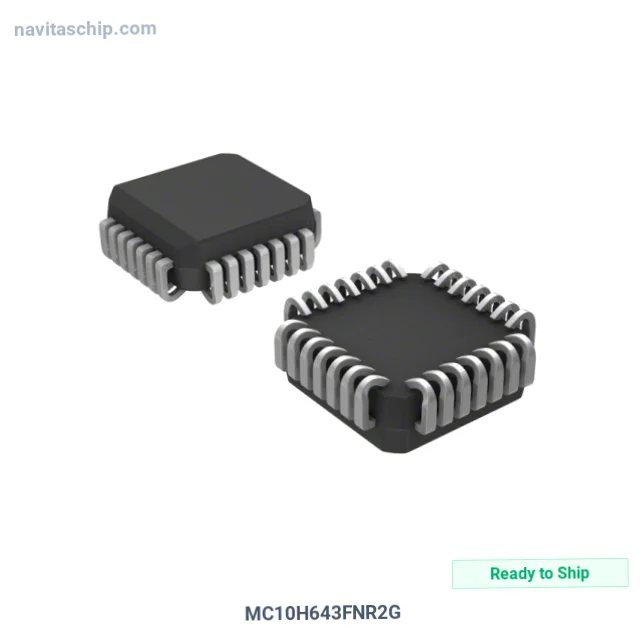

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC10H643FNR2G |
| Manufacturer | onsemi |
| NavitasChip Part Number | NAVI-920816 |
| Description | IC CLK BUFFER 1:8 80MHZ 28PLCC |
| Spec | 28-LCC (J-Lead) |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:8 |
| Differential - Input | Yes/No |
| Input | ECL, TTL |
| Output | TTL |
| Frequency - Max | 80 MHz |
| Voltage - Supply | 4.75V ~ 5.25V, -4.68V ~ -5.72V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC10H643FNR2G is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:8 operating at 80MHz 28plcc, housed in a compact 28-PLCC (11.51x11.51) package, with 4.75V ~ 5.25V, -4.68V ~ -5.72V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V, -4.68V ~ -5.72V
- Operating Temperature: 0°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-LCC (J-Lead)
- Device Package: 28-PLCC (11.51x11.51)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
