Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer, Data |
| Number of Circuits | 1 |
| Ratio - Input | 2:10 |
| Differential - Input | Yes/Yes |
| Input | CML, ECL, LVCMOS, LVDS, LVTTL, NECL, PECL |
| Output | RSECL, RSNECL, RSPECL |
| Frequency - Max | 6 GHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-FCBGA (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NBSG111BA Datasheet |

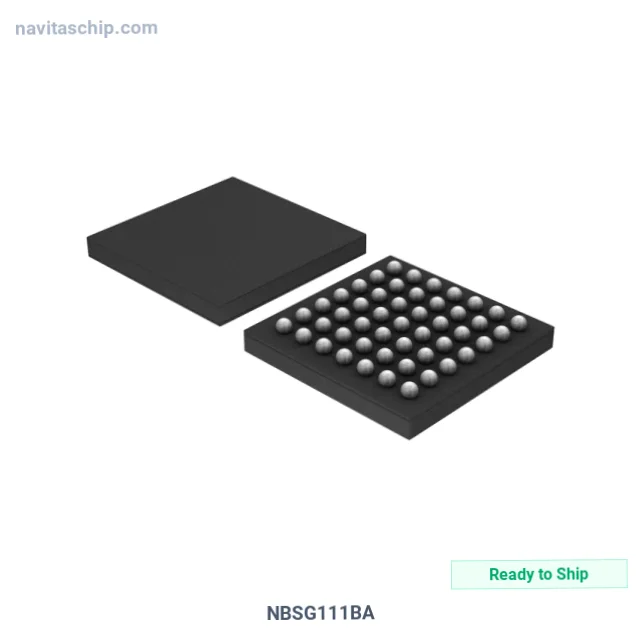

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NBSG111BA is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 2:10 operating at 6GHz in 49-Pin BGA Package, housed in a compact 49-FCBGA (8x8) package, with 2.375V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.465V
- Operating Temperature: -40°C ~ 70°C
- Mounting: Surface Mount
- Package: 49-LFBGA, FCBGA
- Device Package: 49-FCBGA (8x8)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
