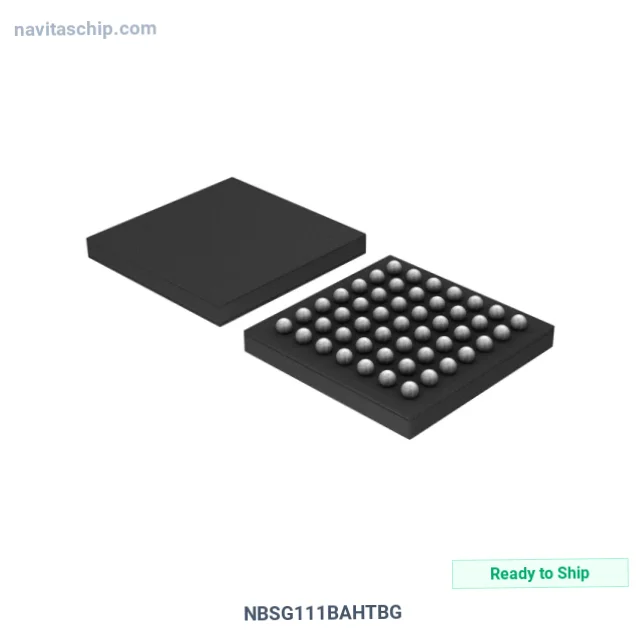

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer, Data |
| Number of Circuits | 1 |
| Ratio - Input | 2:10 |
| Differential - Input | Yes/Yes |
| Input | CML, ECL, LVCMOS, LVDS, LVTTL, NECL, PECL |
| Output | RSECL, RSNECL, RSPECL |
| Frequency - Max | 6 GHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-FCBGA (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NBSG111BAHTBG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NBSG111BAHTBG is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 2:10 operating at 6GHz in 49-Pin BGA Package, housed in a compact 49-FCBGA (8x8) package, with 2.375V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.465V
- Operating Temperature: -40°C ~ 70°C
- Mounting: Surface Mount
- Package: 49-LFBGA, FCBGA
- Device Package: 49-FCBGA (8x8)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
