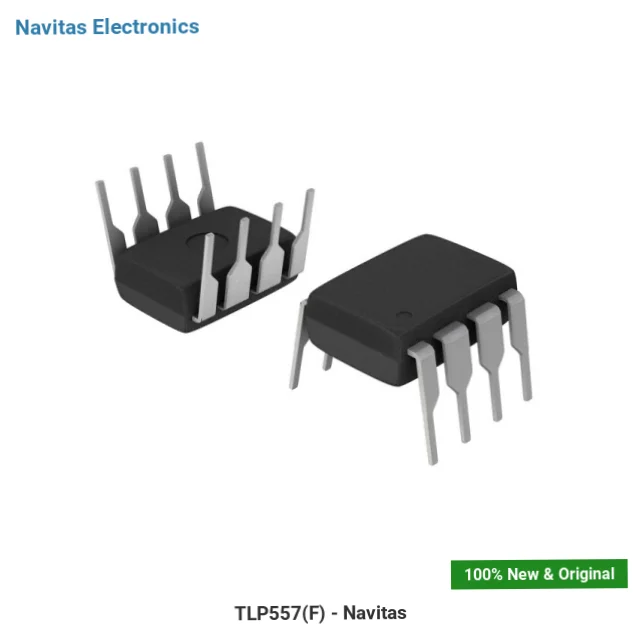

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TLP557(F) |
| Manufacturer | Toshiba Semiconductor and Storage |
| NavitasChip Part Number | NAVI-1641615 |
| Description | OPTOISO 2.5KV PWR TRANS DVR 8DIP |
| Spec | 8-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Package | Tube |
| Product Status | Obsolete |
| Type | Power Transistor Driver |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 2kV/µs |
| Input Type | DC |
| Current - Output / Channel | 320mA |
| Propagation Delay tpLH / tpHL (Max) | 5µs, 5µs |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.55 V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Supply | 5V ~ 13V |
| Operating Temperature | -30°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-DIP |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLP557(F) is an Isolator manufactured by Toshiba Semiconductor and Storage (Toshiba). Optocoupler Isolator 2.5kV Power Trans Driver in 8-Pin DIP Package, housed in a compact 8-DIP package, with 5V ~ 13V supply voltage.
Key Technical Specifications
- Supply Voltage: 5V ~ 13V
- Channels: 1
- Operating Temperature: -30°C ~ 70°C
- Mounting: Through Hole
- Package: 8-DIP (0.300", 7.62mm)
- Device Package: 8-DIP
- RoHS Compliant
