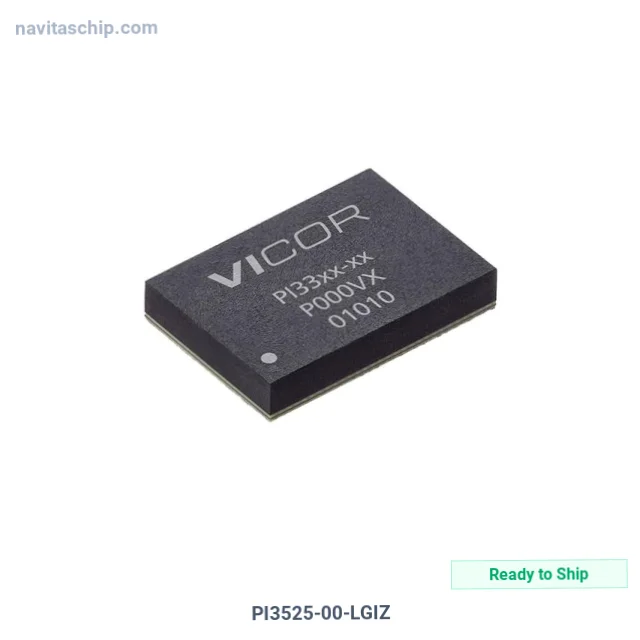

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI3525-00-LGIZ |
| Manufacturer | Vicor Corporation |
| NavitasChip Part Number | NAVI-6573283 |
| Description | IC REG BUCK ADJ/4V 20A 110LGA |
| Spec | 110-BLGA Module |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Vicor Corporation |
| Package | Tray |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 30V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 4V (5V) |
| Voltage - Output (Max) | 6.5V |
| Current - Output | 20A |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 110-LGA (14x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Vicor Corporation PI3525-00-LGIZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI3525-00-LGIZ is a DC-DC Switching Voltage Regulator manufactured by Vicor Corporation. Integrated Circuit Regulator Buck Adjustable/4V Supply 20a in 110-Pin Lga Package, housed in a compact 110-LGA (14x10) package.
Key Technical Specifications
- Output Type: Adjustable (Fixed)
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 110-BLGA Module
- Device Package: 110-LGA (14x10)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
