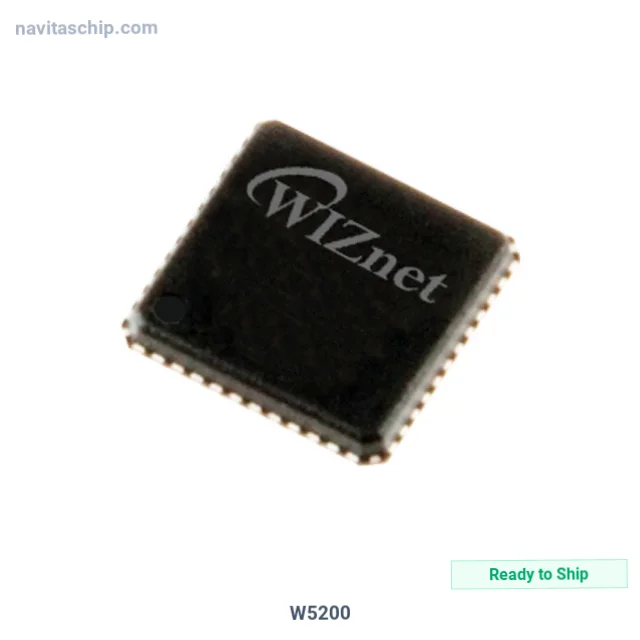

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | WIZnet |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Protocol | Ethernet |
| Function | Controller |
| Interface | SPI |
| Standards | 10/100 Base-T/TX PHY |
| Voltage - Supply | 2.97V ~ 3.63V |
| Current - Supply | 160mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-QFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | WIZnet W5200 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The W5200 is an Interface Controller IC manufactured by WIZnet. Integrated Circuit Controller Ethernet in 48-Pin QFN Package, housed in a compact 48-QFN (7x7) package, with 2.97V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V
- Interface: SPI
- Operating Temperature: -40°C ~ 85°C
- Package: 48-VFQFN Exposed Pad
- Device Package: 48-QFN (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
