Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Active |
| Type | AC Line Monitor |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Input Type | AC, DC |
| Current - Output / Channel | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 1ms, 1ms (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Current - DC Forward (If) (Max) | 30 mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SMD |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MID400SM Datasheet |

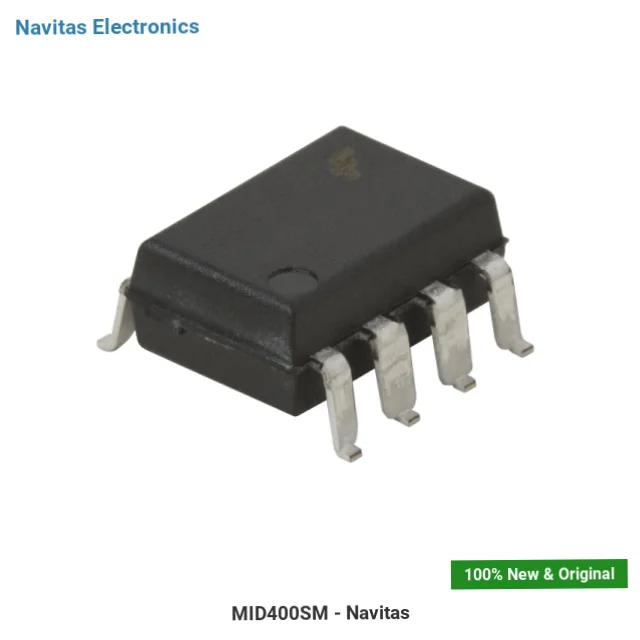

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MID400SM is an Isolator manufactured by onsemi. Optocoupler Isolator 2.5kV Ac Monitor 8-Surface Mount, housed in a compact 8-SMD package, with 7V supply voltage. Military temperature range (-55°C to +125°C).
Don't let isolation component lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 7V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-SMD
- RoHS Compliant
Applications
Ideal solution for:
- solar inverters
- power supplies
- industrial control
- galvanic isolation
- safety barriers
