Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Bulk |
| Product Status | Obsolete |
| Type | AC Line Monitor |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Input Type | AC, DC |
| Current - Output / Channel | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 1ms, 1ms (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Current - DC Forward (If) (Max) | 30 mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SMD |
| Approval Agency | UR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MID400SV Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

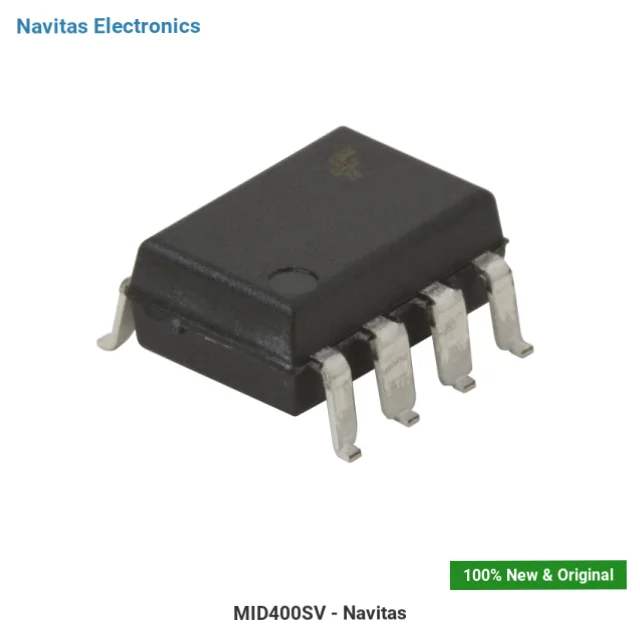

The MID400SV is an Isolator manufactured by onsemi. Optocoupler Isolator 2.5kV Ac Monitor 8-Surface Mount, housed in a compact 8-SMD package, with 7V supply voltage.
Struggling with production line down? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: 7V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-SMD
- RoHS Compliant
Applications
Critical part of:
- industrial fieldbus
- safety barriers
- professional equipment
Why Choose NavitasChip for MID400SV?
NavitasChip offers cost-saving procurement for the MID400SV and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
MID400SV available for international procurement with multiple shipping origin options.
MID400SV - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
