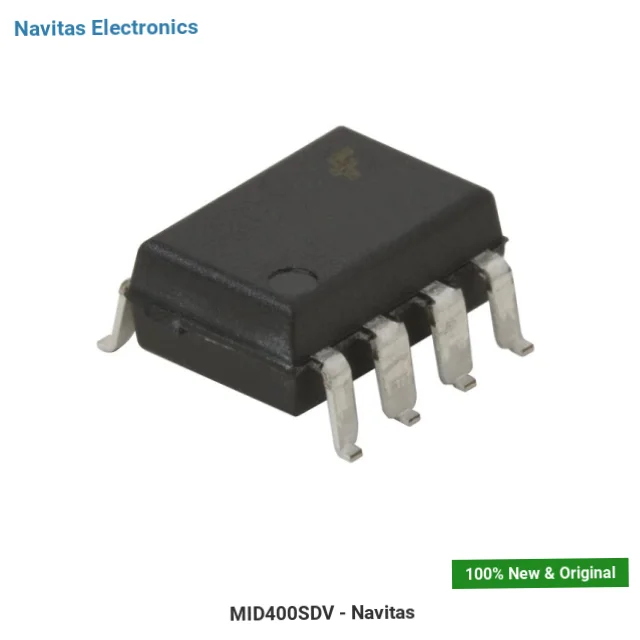

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | AC Line Monitor |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Input Type | AC, DC |
| Current - Output / Channel | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 1ms, 1ms (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Current - DC Forward (If) (Max) | 30 mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SMD |
| Approval Agency | UR, VDE |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MID400SDV Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MID400SDV is an Isolator manufactured by onsemi. Optocoupler Isolator 2.5kV Ac Monitor 8-Surface Mount, housed in a compact 8-SMD package, with 7V supply voltage.
Don't let isolation component lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 7V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-SMD
- RoHS Compliant
Applications
Ideal solution for:
- industrial fieldbus
- motor drives
- industrial control
- safety barriers
- professional equipment
Why Choose NavitasChip for MID400SDV?
NavitasChip offers cost-effective alternative to authorized distributors for the MID400SDV and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of MID400SDV for the Poland and Romania markets.
MID400SDV - Request a quote today.
