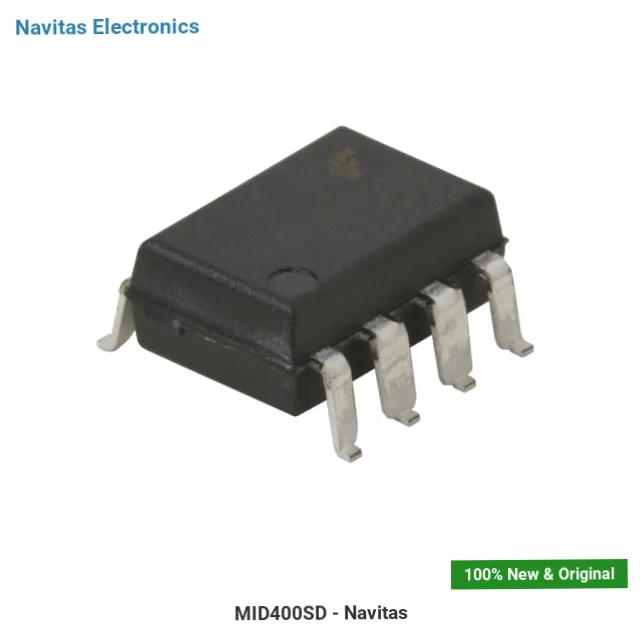

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | onsemi |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | AC Line Monitor |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Input Type | AC, DC |
| Current - Output / Channel | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 1ms, 1ms (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Current - DC Forward (If) (Max) | 30 mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SMD |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MID400SD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MID400SD is an Isolator manufactured by onsemi. Optocoupler Isolator 2.5kV Ac Monitor 8-Surface Mount, housed in a compact 8-SMD package, with 7V supply voltage.
Key Technical Specifications
- Supply Voltage: 7V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-SMD
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
